LN Series

Pixel Pitch (mm) : IndoorLN2.6、IndoorLN2.9、OutdoorLN3.9

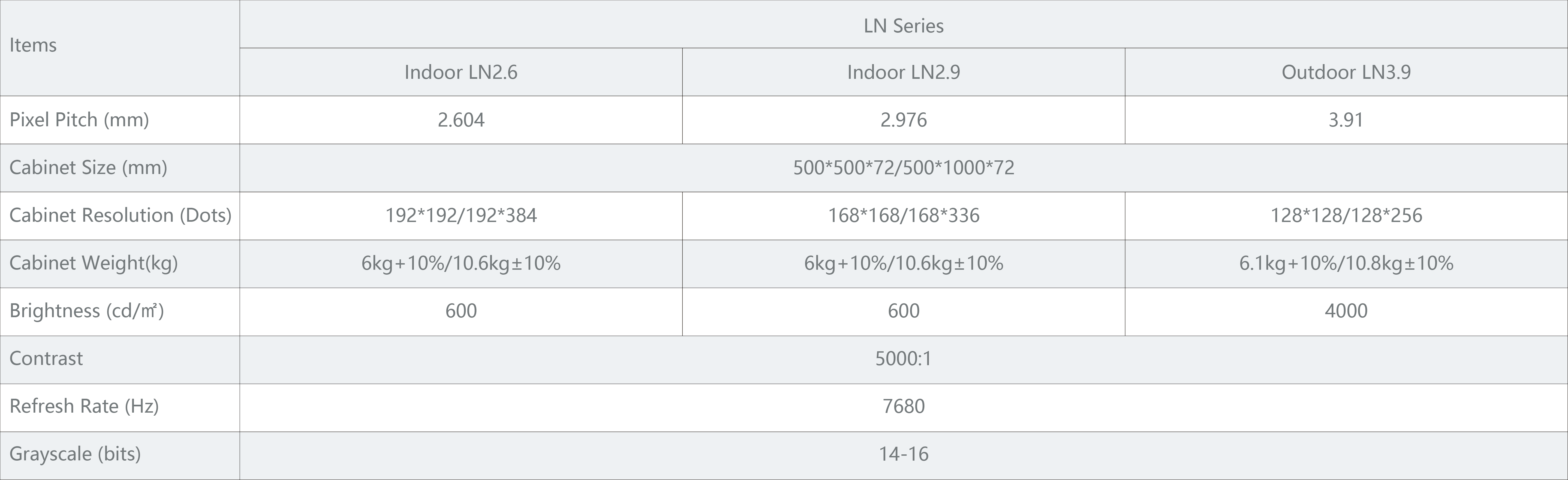

Introduction Parameters

Introduction

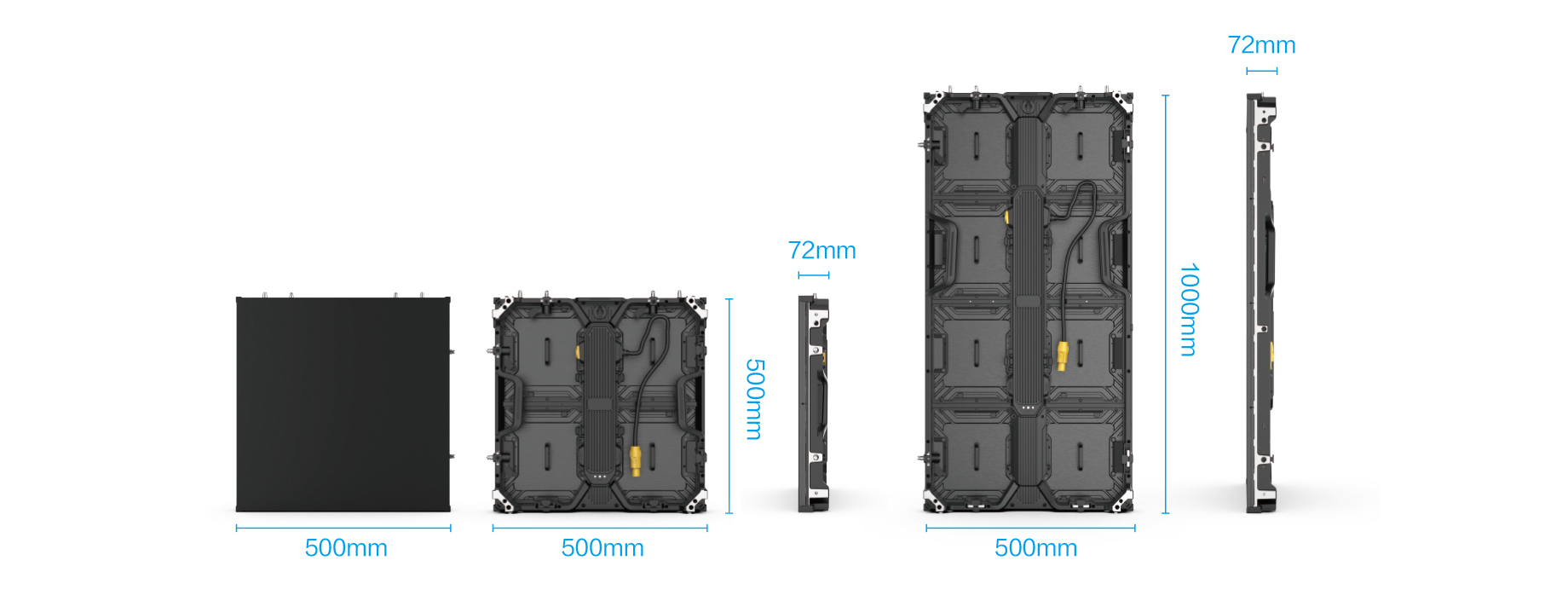

Product Dimensions

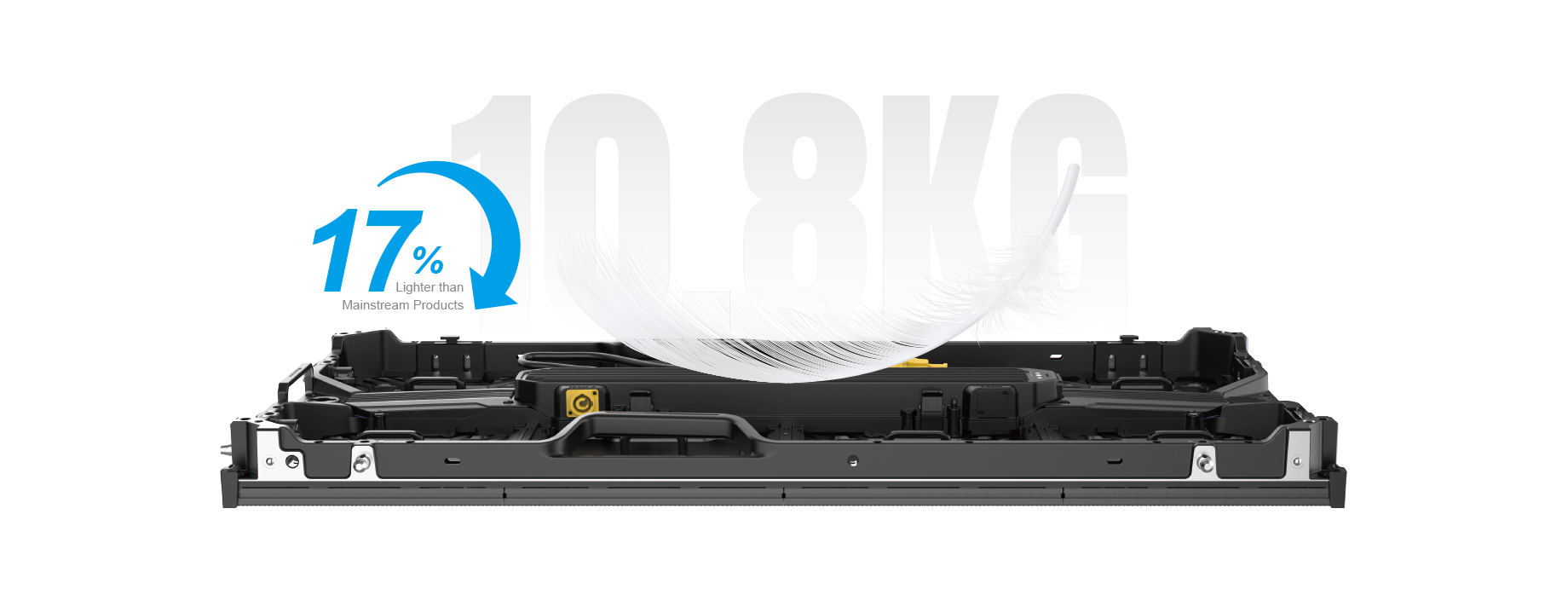

Ultra Slim & Lightweight

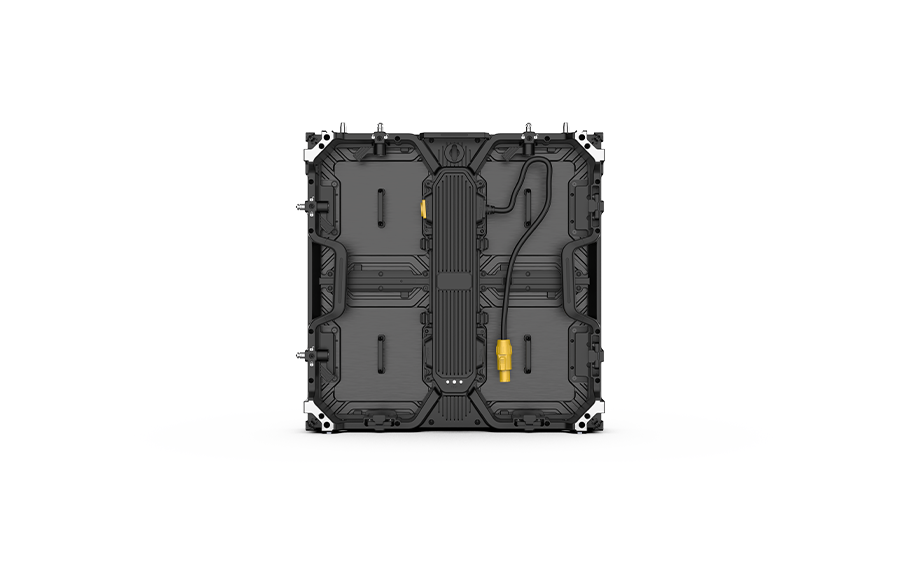

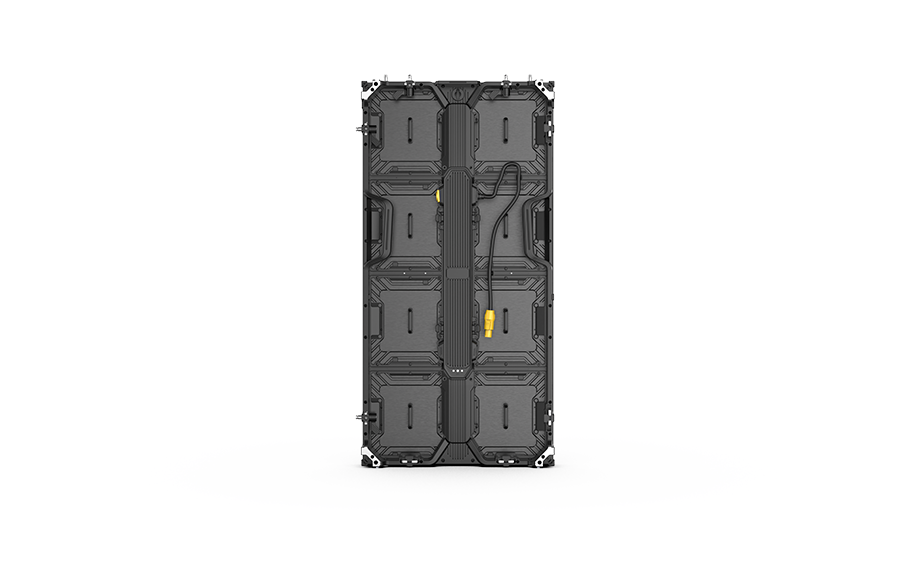

The LN Series is 17% lighter than mainstream market alternatives. With the long cabinet weighing only 10.8kg and the short cabinet 6.1kg, and a slim profile of 72mm, it significantly slashes transportation and labor costs.

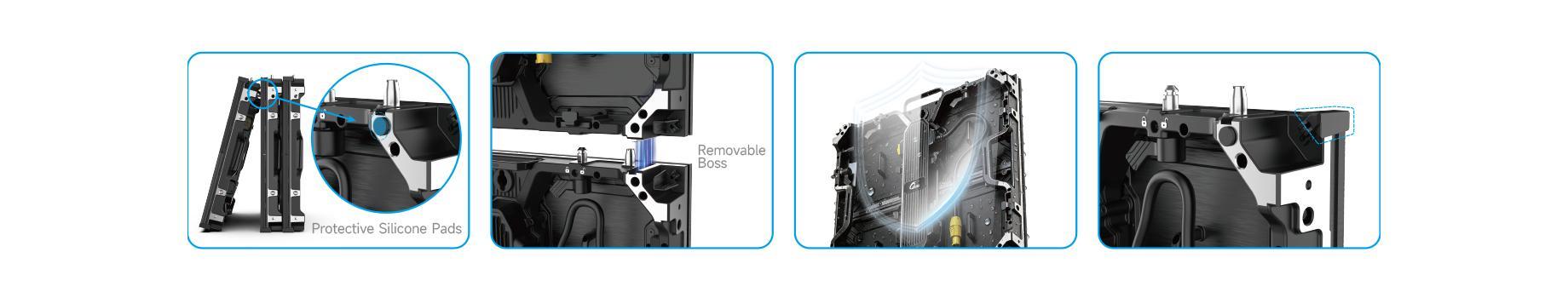

Safety & Reliability

①Scratch-Resistant Design：Buffer silicone pads, reducing lamp damage during leaning and stacking.

②Detachable Bosses：Stable upright positioning without lamp damage, supporting versatile puzzle-style styling.

③High Protection Rating：IP65 front and IP54 rear, fearless against harsh outdoor environments.

※Flip-Up Corner Protectors：Lowered damage rate of LEDs and modules during frequent assembly and transportation.

High Refresh & Grayscale

Delivers an ultra-high refresh rate of 7680Hz, with 600 nits indoor brightness (customizable to 1000 nits) and 4000 nits outdoor brightness (customizable to black LEDs or 5000 nits). It features a 3000-12000K freely adjustable color temperature and 14-16bit professional grayscale. Up to 99% brightness uniformity ensures true, delicate color reproduction with zero scan lines during filming.

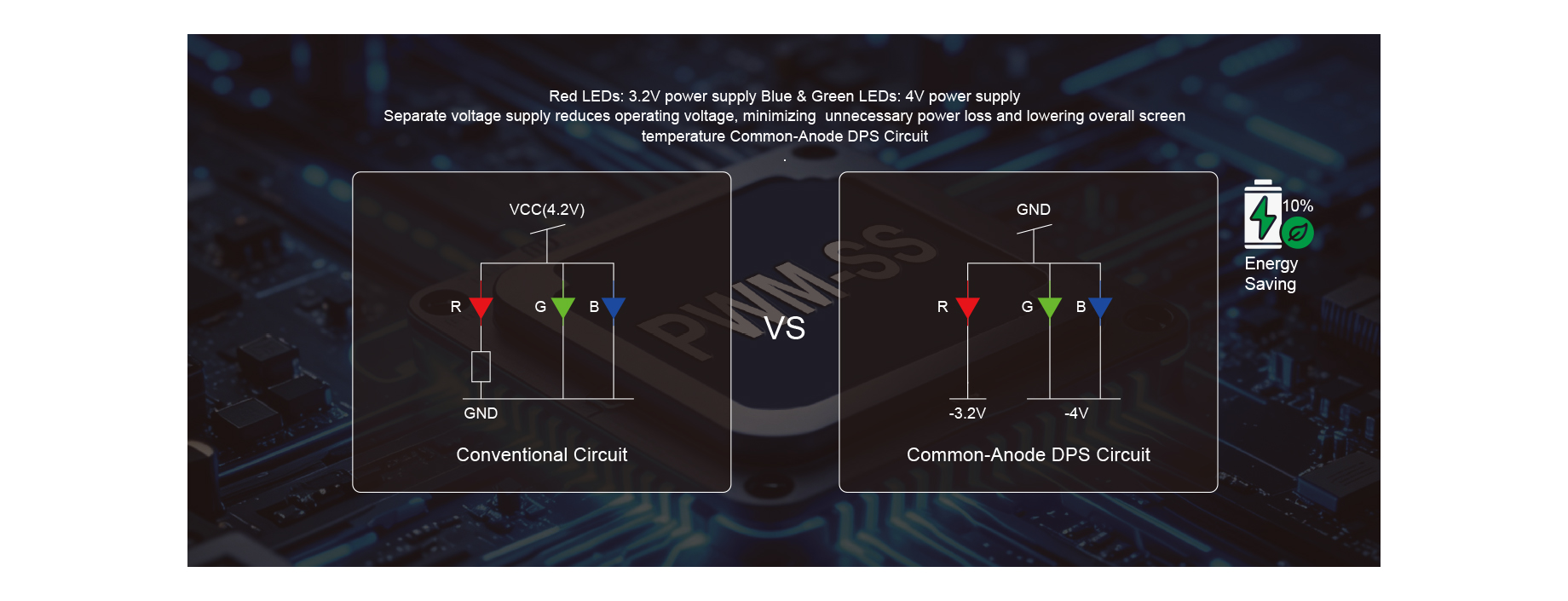

DPS Energy-Saving Technology

Powered by optional dual negative-voltage power supply technology and a 2000cm² ultra-large heat dissipation back cover, the system effectively reduces module heat generation and surface temperature. This helps minimize high-temp color shift, enhance image quality, reduce LED degradation, and extend product lifespan.

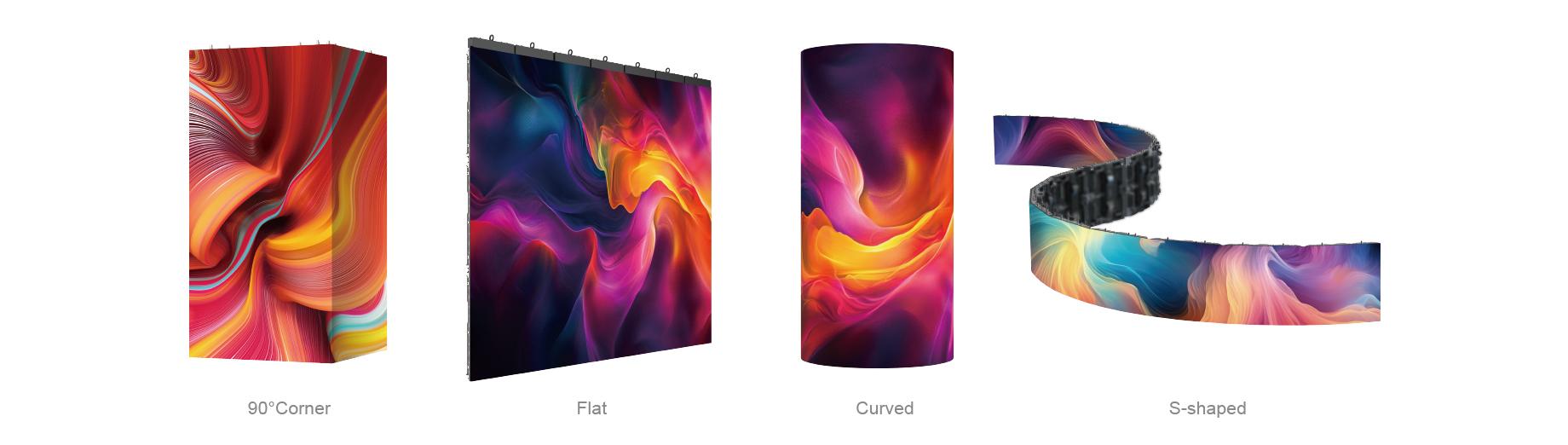

Flexible Installation

Supports multiple installation forms including flat, ±10°curved, 45°angled, S-shaped, 90°corner, staggered triangle, cube, and other creative structures, meeting creative setup needs and presenting highly recognizable stage effects.
